NSR10A01 series asynchronous buck converters have an input voltage range from 9V to 100V, and are suitable for 48V battery systems, such as Ebike GPS trackers/dashboards, photovoltaic energy storage systems, and stepper motors/electric tools, especially Ebike system applications.
Product Features
- Wide 9V to 100V Input Range
- NSR10A01: 500mA output current, 725mA peak current
NSR10A1x: 1A output current, 2A peak current
NSR10A2x: 2A output current, 4A peak current
- Integrated 500mΩ High-Side Power MOSFETs
- Adaptive Constant-on-time Control
- 2.5V Feedback Reference Voltage
- Adjustable Current Limit Off-time
- No Control Loop Compensation Required
- VCC Bias Function for High Light-load Efficiency
- Cycle-by-Cycle Current Limit
- Over-Voltage Protection
- Over-Temperature Protection
Application
- Ebike GPS trackers/dashboards
- Photovoltaic energy storage systems
- Stepper motors
- Electric tools
- Drones

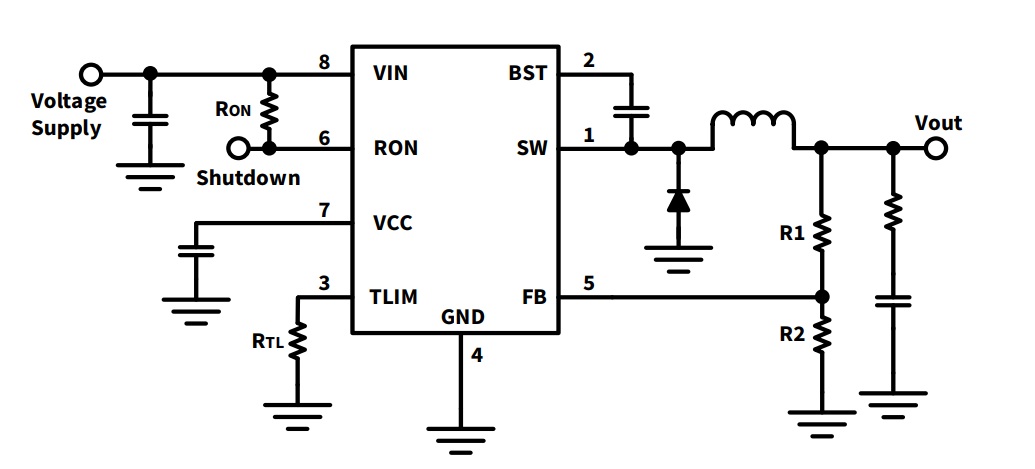

Functional Block Diagram
