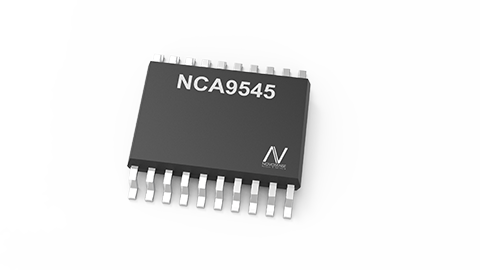

NCA9545 is a four-channel bidirectional switch controlled by I2C bus. SCL/SDA up-link data is spread out to four pairs of down-link data or channels. Any single SCN/SDN channel or combination of channels can be selected, depending on the contents of the programmable control registers. Four interrupt inputs (INT3 to INT0) are provided, each for a down-link pair. One interrupt (INT) output can be used as an AND operation of four interrupt inputs. A low-level on reset (RESET) input enables the NCA9545 to recover from a prolonged low state of any down-link I2C bus. Pulling RESET low resets the I2C state machine and deselects all channels, as does the internal power-on reset function. With a on gate built into the switch, the VCC terminal can be used to limit the maximum voltage delivered by NCA9545. This allows each channel to use a different bus voltage so that parts with voltage of 1.8V, 2.5V or 3.3V can communicate with parts with voltage of 5V without any additional protection. External pull-up resistors pull the bus up to the desired voltage level for each channel. All I/O terminals can withstand 5.5V voltage.
Product Features
? 4-to-1 bidirectional switch
? Compatible with I2C bus and SMBus
? Low-level on reset input
? 2 address pins, supporting 4 different addresses
? Operation power supply voltage range is 1.65V to 5.5V
? Low standby current
? Supporting hot plugging
? Latch-up performance is higher than 100mA, compliant with JESD78 Class II
? ESD protection performance higher than what are stated in JESD22
o2000V human body charge-discharge model (A114-A)
o1000V charging component model (C101)
? Operation temperature: -40℃~105℃
? RoHS compliant package: TSSOP-20
Application
? Server
? Router (telecom switching equipment)
? Factory automation
? Products with I2C slave address contention
Functional Block Diagram
