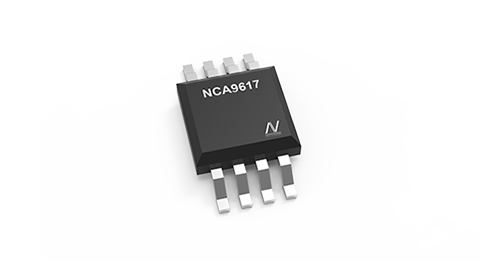

NCA9617A is a BiCMOS dual bidirectional buffer designed for I2C bus and SMBus systems. The component allows bidirectional voltage level shift (up-conversion and down-conversion modes) between low voltages (as low as 0.8V) and higher voltages (2.2V to 5.5V) in hybrid applications. During level shift, this component extends I2C and similar bus systems without impairing system performance.
Product Features
? Dual-channel Bidirectional I2C Buffer
? Standard mode, fast mode (400kHz) and fast mode+ (1MHz) supported
? I2C operates voltage level shift from 0.8V to 5.5V and 2.5V to 5.5V
? Open-drain I2C I/O
? Clock stretching and multi-master arbitration supported on component
? Latch-up performance is higher than 100mA, compliant with JESD78 Class II
? ESD protection performance higher than what are stated in JESD22
o5500V human body charge-discharge model (A114-A)
o1500V charging component model (C101)
? Operation temperature: -40℃~105℃
? RoHS compliant package: MSOP-8
Application
? Server
? Router (telecom switching equipment)
? Industrial equipment
? Integrated with a number of I2C slave components or products with long PCB wiring

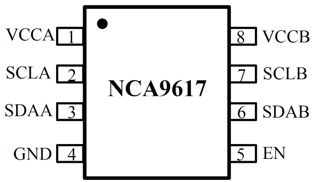

Functional Block Diagram
For more product information, please contact us.
