NOVOSENSE introduces the new NSM107x series of low-power Hall switches, providing high-precision digital position detection solutions for a wide range of industrial and consumer electronics applications.
NOVOSENSE's New NSM107x Series of Hall Switches
The NSM107x series consists of two models: NSM1071 (unipolar switches) and NSM1072 (omnipolar switches). By offering user-selectable key features including switching points, power modes, output interfaces and packaging forms, the NSM107x series can be widely used in industrial and consumer applications.
In factory automation control systems, industrial robots and automated production equipment, NSM107x can be used to detect mechanical motion, position and speed. Its low-power consumption ensures reliable equipment performance and reduces energy consumption during long-term operation. In the field of consumer electronics, the NSM107x series finds even broader applications, such as computer lid detection for automatic screen switching and collision detection of robot vacuum cleaners.

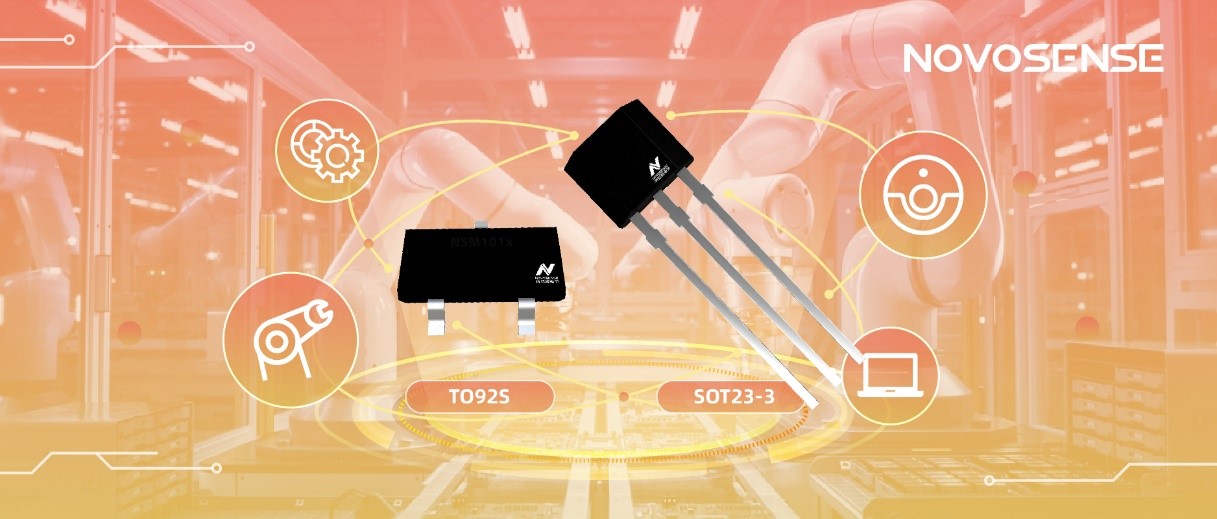

The NSM107x series uses two industry-standard packages, TO92S and SOT23-3, which are compatible with mainstream competing products in the market. They support through-hole soldering and PCB SMT, enabling direct chip replacement without changing the structural design.
Product Features of NSM107x Series
Operating voltage range: 1.65~5.5V
High sensitivity, Bop/Brp selectable
Extremely low power consumption: The regular power consumption version has a supply current as low as 1.4mA, and the low power consumption version (20Hz) has an average supply current as low as 1.5μA
Optional output interface: push-pull or open-drain
Operating temperature: -40°C~125°C
Applications of NSM107x Series
IoT devices
Meter tampering detection
Proximity switch
Wake-up switch
Speed detection
